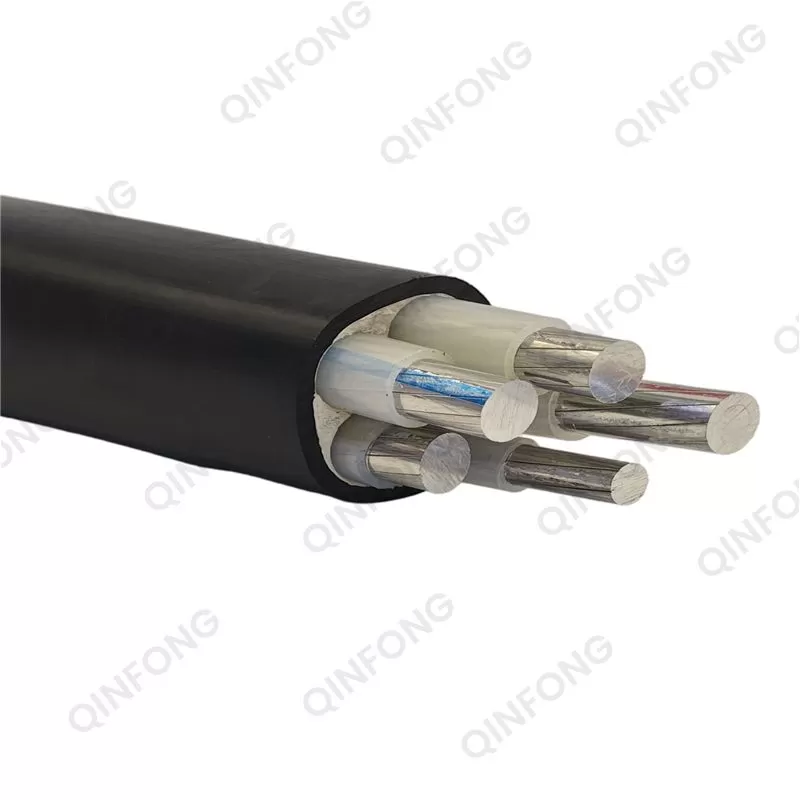

Aluminum Alloy Conductor Power Cable

Advantages:

‌The advantages of aluminum alloy power cables mainly include excellent safety performance, electrical conductivity, corrosion resistance, mechanical properties, connection performance and economic factors.

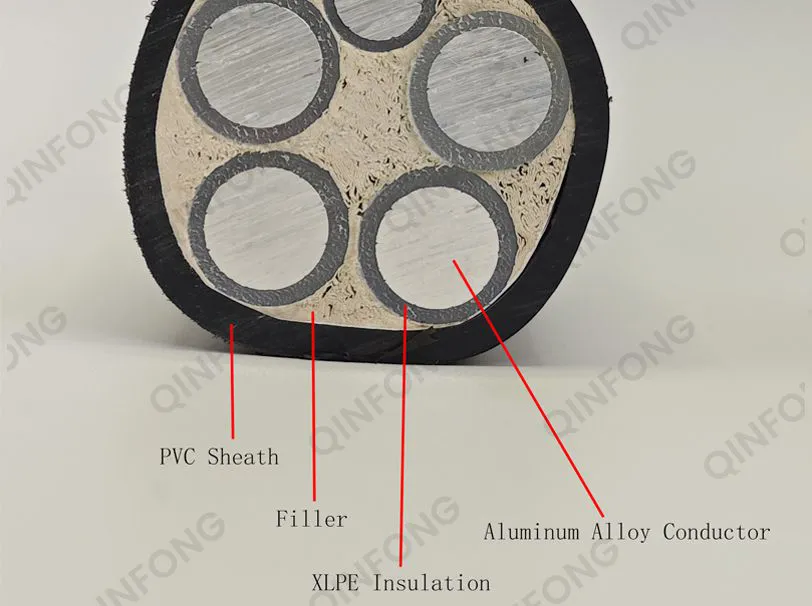

Conductor: Aluminum Alloy

Insulation material: Crosslinked Polyethylene

Insulation color: Natural Color or to be customized

Filling material: Non-hygroscopic Material

Outer sheath: PVC/PE

Sheath color: Black

Physical property:

Maximum operating temperature of conductor:

70℃ (PVC insulation), 90℃ (XLPE insulation)

Minimum operating temperature:

-5℃ (PVC or LSZH sheath), -20℃ (PE sheath)

Short-circuit temperature (no more than 5 seconds):

140℃-160℃ (PVC insulation), 250℃ (XLPE insulation)

Technical Parameters

3+1-Core Aluminum Alloy Conductor XLPE Insulated PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20℃)	Current Carrying Capacity（Ω/km）
(mm²)	(mm)	(mm)	(mm)	(kg/km)	（Ω/km）	In Air (A)	In Ground (A)
3×16+1×10	0.7/0.7	1.8	19.4	370	1.91/3.08	65	85
3×25+1×16	0.9/0.7	1.8	22.8	520	1.20/1.91	87	110
3×35+1×16	0.9/0.7	1.8	25.1	650	0.868/1.91	105	130
3×50+1×25	1.0/0.9	1.8	28.2	780	0.641/1.20	130	160
3×70+1×35	1.1/0.9	1.9	31.9	1050	0.443/0.868	165	195
3×95+1×50	1.1/1.0	2.1	35.7	1460	0.320/0.641	205	235
3×120+1×70	12./1.1	2.2	39.6	1820	0.253/0.443	240	265
3×150+1×70	1.4/1.1	2.3	43.6	2150	0.206/0.443	270	300
3×185+1×95	1.6/1.1	2.5	49.8	2725	0.164/0.320	315	340
3×240+1×120	1.7/1.2	2.7	55.3	3480	0.125/0.253	375	395
3×300+1×150	1.8/1.4	2.9	57.0	4230	0.100/0.206	435	445
3×400+1×185	2.0/1.7	3.1	70.0	5520	0.0778/0.164	510	510
4+1-Core Aluminum Alloy Conductor XLPE Insulated PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20℃)	Current Carrying Capacity（Ω/km）
(mm²)	(mm)	(mm)	(mm)	(kg/km)	（Ω/km）	In Air (A)	In Ground (A)
4×16+1×10	0.7/0.7	1.8	21.3	450	1.91/3.08	65	85
4×25+1×16	0.9/0.7	1.8	25.7	650	1.20/1.91	87	110
4×35+1×16	0.9/0.7	1.8	28.2	795	0.868/1.91	105	130
4×50+1×25	1.0/0.9	1.9	28.9	1020	0.641/1.20	130	160
4×70+1×35	1.1/0.9	2.0	32.2	1360	0.443/0.868	165	195
4×95+1×50	1.1/1.0	2.2	36.9	1870	0.320/0.641	205	235
4×120+1×70	12./1.1	2.3	40.8	2342	0.253/0.443	240	265
4×150+1×70	1.4/1.1	2.5	44.7	2778	0.206/0.443	270	300
4×185+1×95	1.6/1.1	2.7	50.7	3495	0.164/0.320	315	340
4×240+1×120	1.7/1.2	2.9	56.4	4416	0.125/0.253	375	395
4×300+1×150	1.8/1.4	3.1	64.0	5422	0.100/0.206	435	445
3+2-Core Aluminum Alloy Conductor XLPE Insulated PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20℃)	Current Carrying Capacity（Ω/km）
(mm²)	(mm)	(mm)	(mm)	(kg/km)	（Ω/km）	In Air (A)	In Ground (A)
3×16+2×10	0.7/0.7	1.8	20.8	425	1.91/3.08	65	85
3×25+2×16	0.9/0.7	1.8	25.2	600	1.20/1.91	87	110
3×35+2×16	0.9/0.7	1.8	26.8	720	0.868/1.91	105	130
3×50+2×25	1.0/0.9	1.9	28.7	955	0.641/1.20	130	160
3×70+2×35	1.1/0.9	2.0	33.7	1230	0.443/0.868	165	195
3×95+2×50	1.1/1.0	2.2	38.3	1706	0.320/0.641	205	235
3×120+2×70	12./1.1	2.3	43.2	2180	0.253/0.443	240	265
3×150+2×70	1.4/1.1	2.4	46.5	2525	0.206/0.443	270	300
3×185+2×95	1.6/1.1	2.6	51.9	3195	0.164/0.320	315	340
3×240+2×120	1.7/1.2	2.8	58.0	4050	0.125/0.253	375	395
3×300+2×150	1.8/1.4	3.0	64.2	4983	0.100/0.206	435	445

Customization

Our team is composed of experienced experts who are eager to help you find the right solution for your business.

Please specify product categories and specifications

Annual output of customized products: 8000 tons/year

Please specify the voltage: 0.3-35KV

Produce as per CE, UL, RoHS, IEC, etc.

Produce as per customers’ samples
