Voltage: 0.45/0.75KV
Model: KVV KVVR...
Product name:

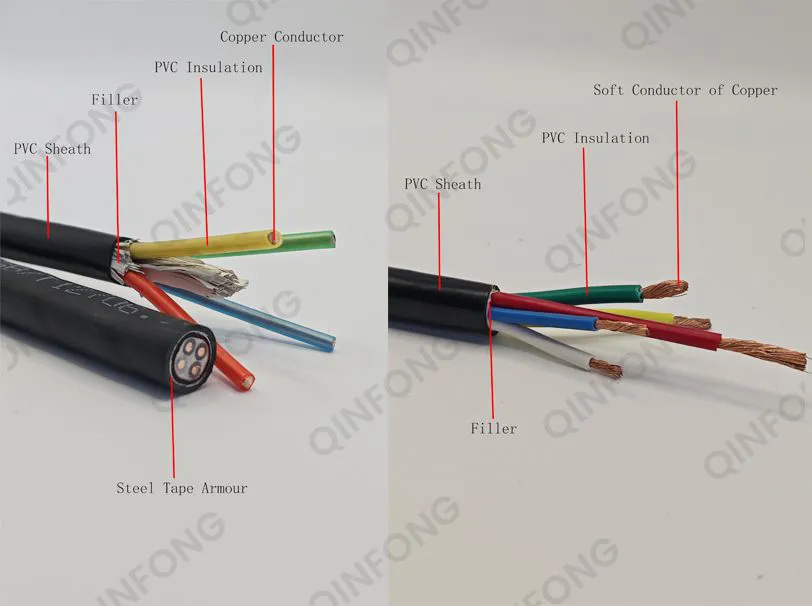

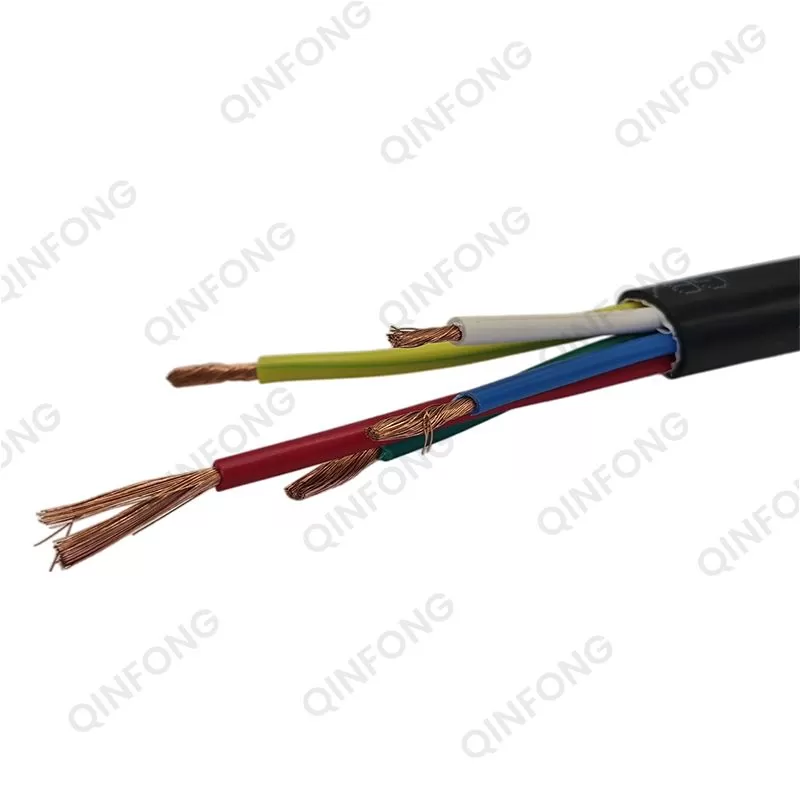

Copper Core PVC Insulated PVC Sheathed Control Cable
Applications:
Control cables are usually used as connection lines for control systems, signal transmission systems, protection and measurement systems.
Conductor allowable operating temperature:90℃ (crosslinked polyethylene insulation), 70℃ (polyvinyl chloride insulation)
Cable laying temperature: Not lower than 0℃.
Conductor material:Oxygen-free copper/multi-strand soft core copper wire
Insulation material: PVC
Sheath material: Polyvinyl chloride
Allowable bending radius of cable installation:
(1) Unarmored cable, should be less than 6 times the outer diameter of the cable
(2) The cable with armored or copper tape shielding structure should not be less than 12 times the outer diameter of the cable
(3) The flexible cable with a shielded layer structure should not be less than 6 times the outer diameter of the cable
Technical Parameters
Customization
Our team is composed of experienced experts who are eager to help you find the right solution for your business.
Please specify product categories and specifications
Annual output of customized products: 8000 tons/year
Please specify the voltage: 0.3-35KV
Produce as per CE, UL, RoHS, IEC, etc.
Produce as per customers’ samples
We have the core technology of cable products, advanced production equipment and perfect manufacturing process. The company is composed of a professional team that has worked in the cable industry for nearly 20 years.
