Voltage:0.3/0.5KV 0.45/0.75KV
Model: YQ YZ YC YH JHS...
Product Introduction:
The product is a soft and mobile cable, mainly composed of multiple strands of fine copper wire as conductor, rubber insulation and rubber sheath. Compared with the traditional hard cable, this cable has better flexibility and high temperature resistance. Compared with another kind of flexible cable -PVC cable, this cable has higher durability and wear resistance.
Advantages:
Flexible and resistant to bending, easy to install and maintain.
High temperature resistant, suitable for electrical equipment in high temperature environment.
Wear resistance, suitable for equipment in high wear environment.
Strong durability, long service life, economic and practical.
Good insulation performance to ensure the safe transmission of current.
Applications:
Steel mills, chemical plants, electric power plants and other production industrial equipment
Elevator room, ventilation room and other electrical equipment
Greenhouse lighting, water pump, cleaning machine and other electrical equipment
Heating system of ships

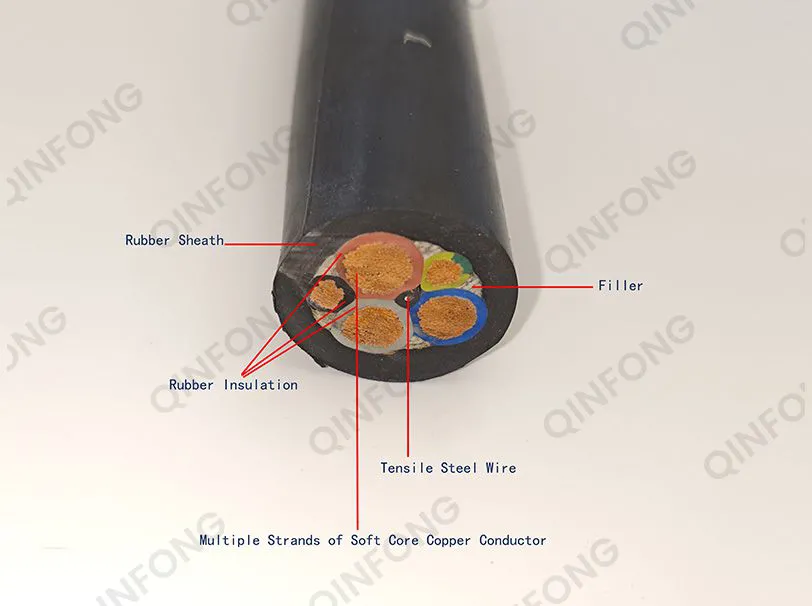

Conductor: Multiple strands of soft core copper conductor
Insulation: Rubber insulation
Filling material: Tensile steel wire
Sheath: Rubber
Operating Temperature:
Generally speaking, the maximum operating temperature of the product can be divided into the following grades:
70℃ grade: This is a common rubber sheath cable, suitable for general industrial and civil occasions. It has good heat resistance and can be operated safely at ambient temperatures not exceeding 70 ° C.
90℃ grade: This rubber sheath cable has higher heat resistance and is suitable for some special industrial environments, such as high temperature workplaces or equipment that needs to withstand higher temperatures. It can be operated safely at ambient temperatures not exceeding 90 ° C.
105℃ grade: This is a high temperature rubber sheath cable, suitable for some extreme industrial environments, such as metallurgy, chemical industry and other industries. It can be operated safely at ambient temperatures of no more than 105 ° C.
Customization
Our team is composed of experienced experts who are eager to help you find the right solution for your business.
Please specify product categories and specifications
Annual output of customized products: 8000 tons/year
Please specify the voltage: 0.3-35KV
Produce as per CE, UL, RoHS, IEC, etc.
Produce as per customers’ samples
We have the core technology of cable products, advanced production equipment and perfect manufacturing process. The company is composed of a professional team that has worked in the cable industry for nearly 20 years.
