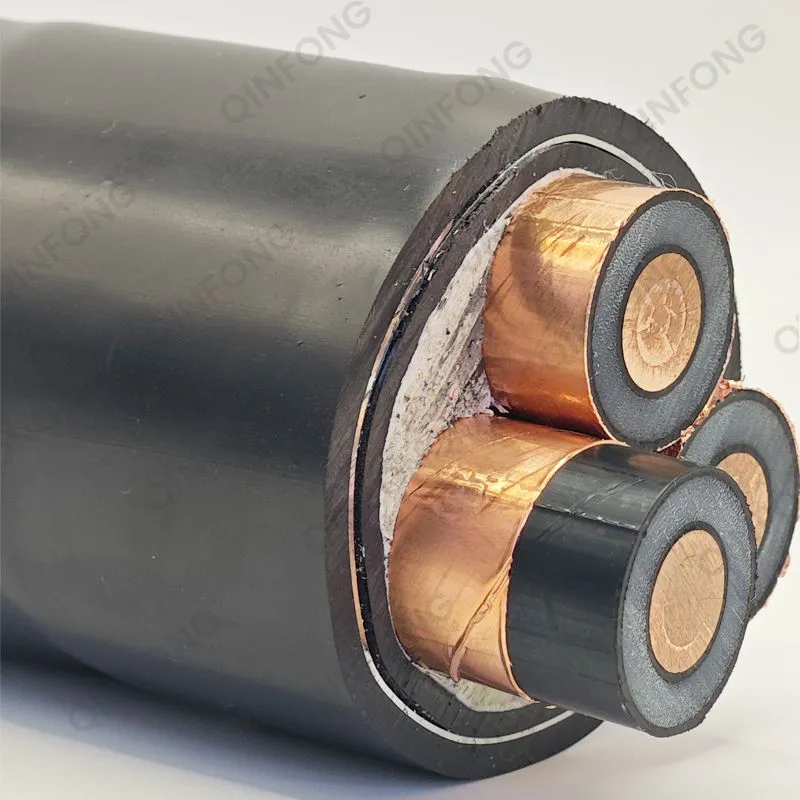

Voltage：6/10KV，8.7/15KV，19/33KV，26/35KV
Model: YJV22 YJV32 YJV42...
Applications:
Substation
Administration of Power Supply
Industrial plantl Outdoor, underground, underwater
Indoor and cable conduit
Advantages:
The advantages are mainly reflected in its good electrical conductivity, good corrosion resistance and oxidation resistance, maintenance and repair convenience.

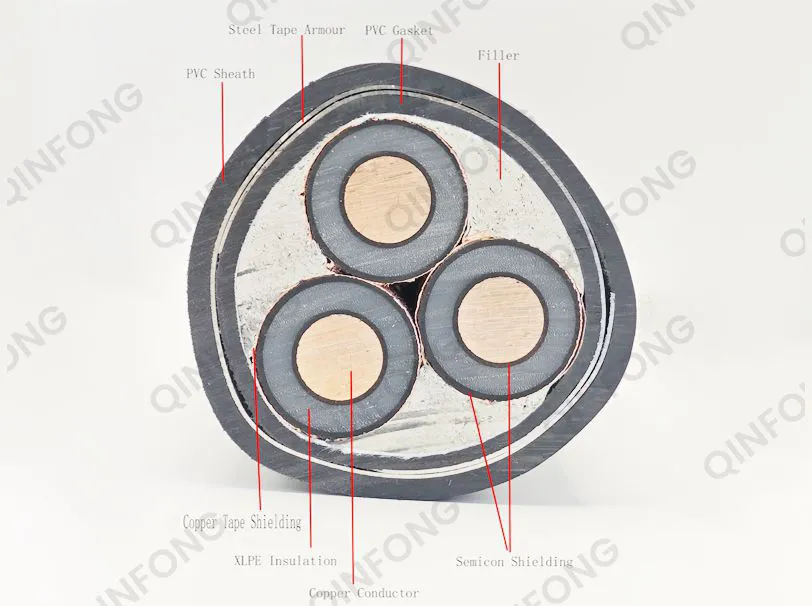

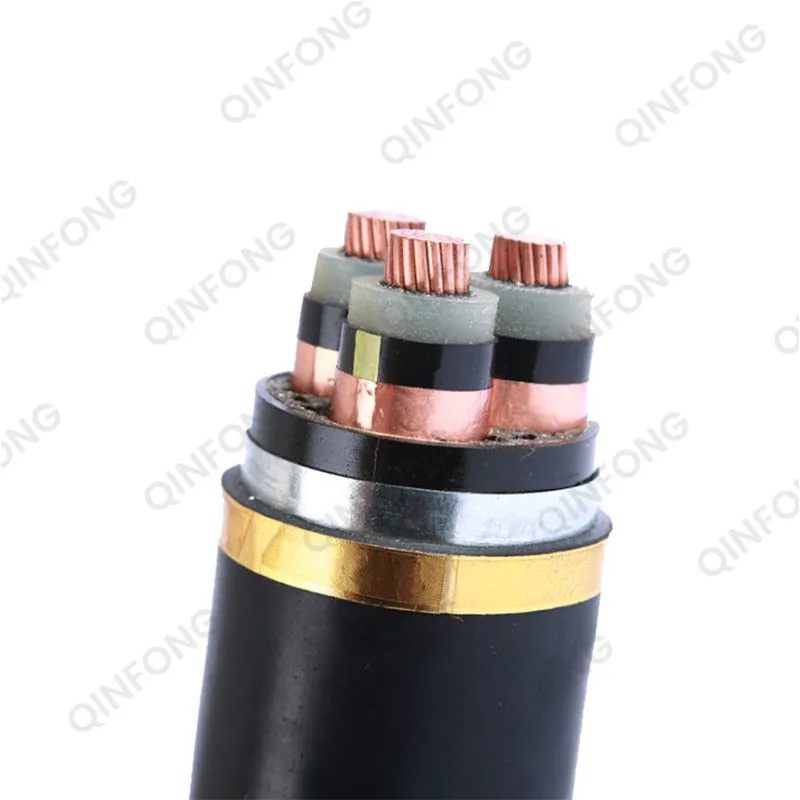

Conductor: Oxygen-free copper
Conductor shielding: Non-metallic semiconductor mixture
Insulation: Crosslinked polyethylene
Insulation shield: Non-metallic semiconductor mixture
Metal shield: Copper tape
Filler: Non-hygroscopic material
Binding: Moisture-proof non-woven fabric
Reinforcement: Steel tape armoring（To be customized)
Outer sheath: PVC/PE/LSZH
Physical property:
Conductor maximum operating temperature:
70℃ (PVC insulation), 90℃ (XLPE insulation)
Minimum operating temperature:
-5℃ (PVC or LSZH sheath), -20℃ (PE sheath)
Short-circuit temperature (no more than 5 seconds):
140℃-160℃ (PVC insulation), 250℃ (XLPE insulation)
Technical Parameters
| 3-Core Copper Conductor Cable（6/10KV） | |||||||||
| No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of PVC Gasket | Thickness of Steel Tape | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
| 3×35 | 3.4 | 1.6 | 0.5 | 2.4 | 50 | 3500 | 0.524 | 154 | 151 |
| 3×50 | 3.4 | 1.8 | 0.5 | 2.5 | 53 | 4000 | 0.387 | 183 | 178 |
| 3×70 | 3.4 | 1.8 | 0.5 | 2.6 | 57 | 5000 | 0.268 | 225 | 215 |
| 3×95 | 3.4 | 2 | 0.5 | 2.7 | 60 | 5850 | 0.193 | 272 | 257 |
| 3×120 | 3.4 | 2 | 0.5 | 2.9 | 64 | 7150 | 0.153 | 310 | 290 |
| 3×150 | 3.4 | 2 | 0.5 | 3.0 | 68 | 8200 | 0.124 | 348 | 323 |
| 3×185 | 3.4 | 2.2 | 0.5 | 3.1 | 71 | 9300 | 0.0991 | 396 | 363 |
| 3×240 | 3.4 | 2.2 | 0.5 | 3.3 | 78 | 11500 | 0.0754 | 462 | 418 |
| 3×300 | 3.4 | 2.2 | 0.8 | 3.4 | 83 | 13550 | 0.0601 | 523 | 467 |
| 3×400 | 3.4 | 2.4 | 0.8 | 3.6 | 86 | 17400 | 0.047 | 582 | 515 |
| 3-Core Copper Conductor Cable（8.7/15KV） | |||||||||
| No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of PVC Gasket | Thickness of Steel Tape | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
| 3×35 | 4.5 | 1.6 | 0.5 | 2.6 | 55 | 4100 | 0.524 | 154 | 151 |
| 3×50 | 4.5 | 1.8 | 0.5 | 2.7 | 57 | 4500 | 0.387 | 183 | 178 |
| 3×70 | 4.5 | 1.8 | 0.5 | 2.8 | 61 | 5500 | 0.268 | 225 | 215 |
| 3×95 | 4.5 | 2 | 0.5 | 2.9 | 66 | 6500 | 0.193 | 272 | 257 |
| 3×120 | 4.5 | 2 | 0.5 | 3.0 | 69 | 7600 | 0.153 | 310 | 290 |
| 3×150 | 4.5 | 2 | 0.5 | 3.1 | 73 | 8700 | 0.124 | 348 | 323 |
| 3×185 | 4.5 | 2.2 | 0.5 | 3.3 | 77 | 9950 | 0.0991 | 396 | 363 |
| 3×240 | 4.5 | 2.2 | 0.5 | 3.4 | 81 | 12200 | 0.0754 | 462 | 418 |
| 3×300 | 4.5 | 2.2 | 0.8 | 3.6 | 88 | 15000 | 0.0601 | 523 | 467 |
| 3×400 | 4.5 | 2.4 | 0.8 | 3.8 | 92 | 18500 | 0.047 | 582 | 515 |
| 3-Core Copper Conductor Cable（12/20KV） | |||||||||
| No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of PVC Gasket | Thickness of Steel Tape | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
| 3×35 | 5.5 | 1.7 | 0.5 | 2.8 | 59 | 4300 | 0.524 | 154 | 151 |
| 3×50 | 5.5 | 1.8 | 0.5 | 2.9 | 62 | 5000 | 0.387 | 183 | 178 |
| 3×70 | 5.5 | 1.9 | 0.5 | 3.0 | 66 | 5800 | 0.268 | 225 | 215 |
| 3×95 | 5.5 | 1.9 | 0.5 | 3.2 | 68 | 7000 | 0.193 | 272 | 257 |
| 3×120 | 5.5 | 2 | 0.5 | 3.3 | 70 | 7850 | 0.153 | 310 | 290 |
| 3×150 | 5.5 | 2 | 0.5 | 3.4 | 74 | 9150 | 0.124 | 348 | 323 |
| 3×185 | 5.5 | 2.1 | 0.5 | 3.5 | 80 | 10500 | 0.0991 | 396 | 363 |
| 3×240 | 5.5 | 2.2 | 0.5 | 3.7 | 88 | 13550 | 0.0754 | 462 | 418 |
| 3×300 | 5.5 | 2.3 | 0.5 | 3.9 | 92 | 15850 | 0.0601 | 523 | 467 |
| 3×400 | 5.5 | 2.4 | 0.8 | 4.0 | 96 | 18300 | 0.047 | 582 | 515 |
| 3-Core Cable Copper Conductor（18/30KV, 19/33KV,26/35KV） | |||||||||
| No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of PVC Gasket | Thickness of Steel Tape | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
| 3×50 | 8.0 | 2.2 | 0.8 | 3.2 | 75 | 6650 | 0.387 | 183 | 178 |
| 3×70 | 8.0 | 2.3 | 0.8 | 3.3 | 78 | 7650 | 0.268 | 225 | 215 |
| 3×95 | 8.0 | 2.4 | 0.8 | 3.5 | 83 | 8700 | 0.193 | 272 | 257 |
| 3×120 | 8.0 | 2.4 | 0.8 | 3.6 | 87 | 10700 | 0.153 | 310 | 290 |
| 3×150 | 8.0 | 2.5 | 0.8 | 3.7 | 90 | 11750 | 0.124 | 348 | 323 |
| 3×185 | 8.0 | 2.5 | 0.8 | 3.9 | 94 | 13500 | 0.0991 | 396 | 363 |
| 3×240 | 8.0 | 2.6 | 0.8 | 4.0 | 100 | 15500 | 0.0754 | 462 | 418 |
| 3×300 | 8.0 | 2.7 | 0.8 | 4.2 | 106 | 17800 | 0.0601 | 523 | 467 |
