Low-Voltage Wire and Cable Buying Guide

When it comes to electrical installations, selecting the right low-voltage cable wire and wire is essential for ensuring safety, efficiency, and reliability. With a wide variety of options available in the market, it can be challenging to understand which type of wire is best suited for your specific needs. This guide aims to break down the key aspects you need to consider when purchasing low-voltage cable and wire for both residential and commercial use.

Understanding Low-Voltage Wire and Cable

Low-voltage wires and cables are typically used for electrical systems that operate at 50-1,000 volts. These include residential wiring for lighting, security systems, and audio-video applications, as well as commercial and industrial uses such as control circuits and alarm systems. Unlike high-voltage cables, low-voltage cables are designed to handle lower energy levels while maintaining efficiency and safety.

The primary difference between low-voltage and high-voltage wire lies in the amount of current they can safely carry. Low-voltage wire is designed for systems that carry less electrical load, reducing the risk of overheating and fire hazards when installed properly. However, understanding the different types of low-voltage wires and cables is crucial to making the right choice for your project.

Types of Low-Voltage Wire and Cable

There are various types of low-voltage wires and cables, each with specific uses and characteristics. Here are some of the most common types:

• Outdoor Rated Wire: Ideal for installations exposed to weather conditions. These wires are usually made of durable materials such as PVC or polyethylene, which help resist the effects of UV radiation, moisture, and extreme temperatures.

• Plenum Cable: Plenum-rated cables are designed for use in air ducts and spaces with low ventilation. These cables have a fire-resistant coating that reduces smoke and toxic fumes in case of a fire, making them ideal for commercial and institutional settings.

• Security Wire: This is used for security systems such as alarm wiring and video surveillance installations. Security wire is typically color-coded to help easily identify different circuits, ensuring a safe and organized installation process.

• Data Cables: For communication systems, including networking and data transfer, low-voltage data cables like Cat 5e and Cat 6 are commonly used. These cables are engineered for high-speed data transmission with minimal interference.

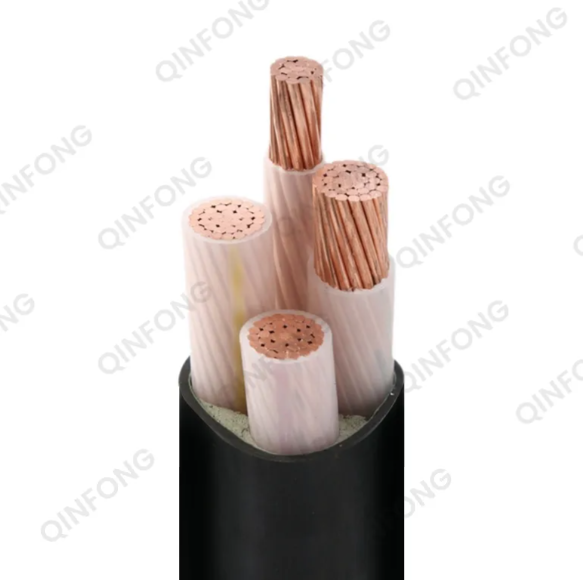

  Low-voltage Power Cable




Key Considerations When Buying Low-Voltage Wire

When purchasing low-voltage wire and cable, you need to consider several factors to ensure that the wiring will meet the safety standards and performance requirements of your project. Below are some of the key factors to keep in mind:

1. Wire Gauge

The gauge of the wire determines the thickness of the wire and its current-carrying capacity. A lower gauge number means a thicker wire, which can carry more current. For example, 12-gauge wire can handle more power than 16-gauge wire. Choosing the correct gauge is essential for preventing overheating and ensuring that the wire can support the devices it’s connected to.

2. Voltage Rating

Every wire or cable comes with a voltage rating that indicates the maximum voltage it can safely handle. Be sure to select a wire with a voltage rating that matches or exceeds the requirements of your electrical system. Using a wire with a lower voltage rating can lead to overheating and potential electrical hazards.

3. Insulation Type

Different insulation materials provide varying levels of protection against external elements like moisture, heat, and fire. Common insulation types include PVC, XLPE, and Teflon. Make sure to select a wire with insulation that is appropriate for your installation environment, whether it’s outdoors, in a damp area, or inside an industrial facility.

4. Application and Environment

Consider the environment in which the wire will be installed. Is it for an outdoor project that needs to withstand sun, rain, or snow? Or is it an indoor installation with controlled conditions? For example, outdoor-rated wire would be necessary for landscape lighting, while plenum-rated cable would be required in air ducts for HVAC systems.

Benefits of Using the Right Low-Voltage Wire

Choosing the correct low-voltage wire and cable for your project offers numerous benefits, including:

• Safety: Proper wire selection reduces the risk of electrical fires and other hazards, ensuring that your installations are compliant with safety regulations.

• Efficiency: Wires designed for specific applications ensure that your electrical system runs smoothly and efficiently, minimizing energy loss and enhancing performance.

• Durability: The right wire for the job ensures that your wiring will last for years without degradation, reducing the need for repairs and replacements.

• Cost-Effectiveness: Selecting the correct wire may seem more expensive upfront but will save you money in the long run by preventing costly electrical failures and reducing the need for ongoing maintenance.




Common Questions About Low-Voltage Wire

Q1: How do I know what gauge wire to use for my project?
A1: The wire gauge is determined by the amount of current your devices or appliances will require. Use a thicker wire (lower gauge) for higher current requirements. A qualified electrician can help you determine the correct gauge based on your specific needs.

Q2: Can low-voltage wire be used for outdoor installations?
A2: Yes, but make sure to use outdoor-rated low-voltage wire. These wires are designed to resist environmental factors such as UV radiation, moisture, and extreme temperatures, ensuring safety and longevity for outdoor applications.

Q3: What’s the difference between PVC and plenum cable?
A3: PVC cable is suitable for general wiring applications, while plenum cable is designed for use in air ducts or spaces with low ventilation. Plenum-rated cables have a fire-resistant coating to reduce smoke and toxic fumes in case of a fire, making them necessary in commercial buildings.

Conclusion: Make the Right Choice for Your Electrical Needs

Selecting the right low-voltage wire and cable is crucial to ensuring the safety, efficiency, and reliability of your electrical systems. By understanding the different types of wires, their applications, and key considerations, you can make an informed decision that meets your specific project requirements. Whether you are wiring a home security system, installing outdoor lighting, or setting up a network, choosing the proper wire ensures that your systems perform well without risks of failure or safety hazards.

If you’re ready to purchase high-quality low-voltage wire and cable for your next project, make sure to choose a trusted supplier that offers top-notch products at competitive prices. Start by browsing our selection to find the right wire for your needs today!
