PV Cables vs Regular Cables: Key Differences

When it comes to electrical installations, selecting the correct cable is essential. With a wide variety of options available, one common comparison is between photovoltaic (PV) cables and regular cables. In this detailed blog post, we will examine the differences, advantages, and specific use cases of PV cables versus regular cables. Whether you're an electrician, homeowner, or renewable energy advocate, understanding the characteristics of these cables will help you make informed decisions for your project.

What Are Photovoltaic Cables?

Photovoltaic cables, also known as solar cables, are specifically designed for solar power systems. These cables connect solar panels to other system components, such as inverters and charge controllers. PV cables are engineered to meet the unique needs of renewable energy installations, ensuring optimal performance and safety.

There are several features that distinguish photovoltaic cables from regular cables. Let’s explore the key differences between the two.

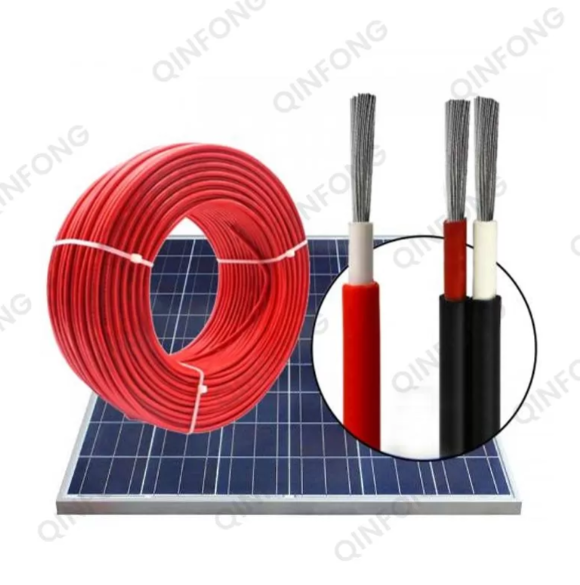

Photovoltaic Cables

Understanding Regular Cables

Regular cables, often referred to as general-purpose cables, are used in a wide range of electrical applications. They are typically found in residential, commercial, and industrial settings, providing power for lighting, appliances, machinery, and more. General-purpose cables are designed to meet the standard requirements of electrical systems, considering factors such as current-carrying capacity, voltage ratings, and insulation.

While general-purpose cables are versatile and reliable, they may not be suitable for specialized applications like solar power systems. Now, let's take a closer look at the specific differences between PV cables and regular cables.

Conductors and Insulation

Photovoltaic cables typically feature highly conductive tinned copper conductors. The tin plating increases the copper’s resistance to corrosion and enhances its solderability. Tinned copper minimizes the risk of oxidation, ensuring long-term reliability in outdoor environments, which are exposed to humidity and other natural elements.

In contrast, regular cables may use copper or aluminum conductors, depending on the application and cable rating. Copper is more expensive but offers superior electrical conductivity, while aluminum is more affordable. The choice between copper and aluminum depends on factors such as current requirements, voltage considerations, and budget.

For insulation, PV cables use materials like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR). These materials offer excellent resistance to heat, UV radiation, and harsh weather, ensuring reliable performance in solar power systems.

Regular cables, on the other hand, may be insulated with materials such as PVC (polyvinyl chloride), rubber, or thermoplastic composites. Each material has its own properties, suited to different environments and conditions.

Current Carrying Capacity

The current-carrying capacity of a cable refers to its ability to handle and transmit current without overheating or causing a voltage drop. PV cables are designed to meet the specific current requirements of solar power systems, taking into account factors such as the maximum output of solar panels and the system’s expected load.

Regular cables are engineered to handle a wide range of current capacities for various electrical applications. The current-carrying capacity of regular cables depends on factors such as the cable's size, conductor material, insulation type, and installation conditions. It's critical to calculate the system’s current requirements and choose the appropriate cable to safely carry the intended load.

Rated Voltage

Photovoltaic cables are typically rated for direct current (DC), the type of electricity generated by solar panels. These cables are generally rated at 600V or 1000V, ensuring they can safely transfer power from the solar panels to the rest of the system. The voltage rating depends on the system design and the maximum voltage the cable can withstand.

Regular cables, on the other hand, are rated for both alternating current (AC) and direct current (DC). AC is commonly used in residential and commercial buildings, while DC is often used in low-voltage applications. The voltage rating for regular cables is governed by electrical codes and standards for the specific installation.

Durability and Weather Resistance

In solar power installations, durability and weather resistance are crucial. Photovoltaic cables are designed to endure harsh outdoor environments, including exposure to sunlight, rain, temperature fluctuations, and other extreme weather conditions. The insulating materials used in PV cables provide excellent resistance to UV rays, moisture, and temperature extremes, ensuring long-lasting performance.

Fire Safety

Fire safety is a critical consideration for any electrical installation, and PV cables are designed with this in mind. They typically meet or exceed fire protection standards such as UL 4703 and IEC 60332-1, ensuring they have low smoke emissions and will not spread flames when exposed to fire. The fire resistance of PV cables provides added safety for solar power systems.

The fire resistance of regular cables can vary based on the insulation material and construction. Always adhere to the relevant fire safety codes and standards when selecting cables for your installation.

Installation Considerations

Installing cables in a solar system requires careful planning and attention to various factors. PV cables are specially designed for solar systems, and many have features that simplify the installation process. For example, some PV cables feature color-coded or numbered insulation for easy identification and correct wiring. In addition, they often come with specialized connectors for secure and easy connections to solar panels, inverters, and other system components.

Regular cables are more versatile but may require additional considerations during installation, such as cable routing, cable management, and proper termination techniques. Following industry best practices, local electrical codes, and manufacturer instructions is essential for ensuring safety and performance.

Cost Analysis

Cost is always an important factor when selecting cables for electrical installations. Photovoltaic cables tend to be more expensive than regular cables due to their specialized design and unique features. The price of PV cables depends on factors such as the materials used, the manufacturing process, compliance with standards, and certifications specific to solar systems.

Regular cables, being more widely used, are generally less expensive upfront. However, it’s important to consider long-term costs and benefits. Factors like cable lifespan, maintenance needs, and specific installation requirements should all be factored into the decision-making process.

Remember, cable costs are just one part of the total cost of an electrical installation. Given the critical role cables play in system safety and performance, it’s essential not to compromise on quality to save costs. Working with reputable suppliers and manufacturers ensures high-quality cables that meet industry standards and are reliable for the long term.

Areas of Application

Photovoltaic cables are mainly used in solar power systems to connect solar panels to inverters, charge controllers, and other system components. These cables are specifically designed to meet the unique demands of solar installations, including outdoor use, sunlight exposure, and DC voltage transmission.

Regular cables are versatile and used in a wide variety of electrical applications. They are suitable for both indoor and outdoor installations, including residential, commercial, and industrial applications, for powering lighting, appliances, machinery, HVAC systems, and more.

Advantages of Photovoltaic Cables in Solar Installations

Photovoltaic cables are specifically designed for solar power systems and offer numerous advantages, including:

• Low Power Loss: PV cables are designed to minimize power loss in solar systems. Tinned copper conductors reduce electrical resistance, ensuring efficient power transfer from solar panels to the rest of the system, which maximizes overall performance and output.

• Long Lifespan: PV cables are built to withstand outdoor conditions, lasting longer than regular cables. Their insulating materials resist UV rays, high temperatures, and other environmental factors, ensuring reliable operation for the expected lifetime of the solar system.

• Safety: PV cables undergo rigorous testing to meet safety standards specific to solar power systems. They are flame-retardant and self-extinguishing, minimizing fire risks. Additionally, they emit low smoke at high temperatures, reducing hazards during fires.

• Easy Installation: Many PV cables feature color-coded or numbered insulation, making them easier to identify and connect correctly. They are also often flexible, facilitating installation in tight spaces.

With these insights, you can make an informed decision when selecting cables for your solar or electrical installation. Whether you're working on a solar power system or a general electrical setup, understanding the unique benefits and specifications of PV cables and regular cables is essential for ensuring safety, performance, and long-term reliability.
