STA (Steel Tape Armored) and SWA (Steel Wire Armored) cables are both armored cables that are used for electrical installations. The main difference between them is the type of armoring used.
When selecting cables for electrical installations, especially in industries that require high-strength armoring for protection, two common types often come into play: STA (Steel Tape Armored) cables and SWA (Steel Wire Armored) cables. Both types offer protection against mechanical stress and environmental factors, but they differ in terms of construction, strength, and application suitability. Understanding the differences between STA and SWA cables is crucial for manufacturers, electrical contractors, and procurement professionals to make informed decisions on the right cable type for their specific needs.
In this article, we will explore the key differences between STA and SWA cables, their applications, and the advantages of each, helping you make the best choice for your projects.

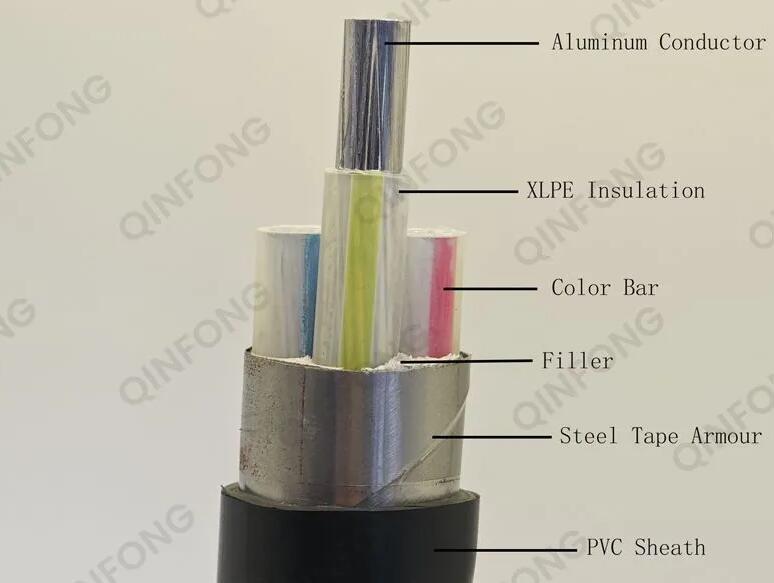

What is STA Cable?
STA cable, also known as Steel Tape Armored cable, is a type of armored cable in which a steel tape is used to provide mechanical protection. The steel tape is applied spirally around the insulated conductors, offering resistance against physical damage and enhancing the cable’s durability. STA cables are often used in environments where there is moderate risk of physical impact or mechanical stress but where flexibility is still a requirement.
Key Characteristics of STA Cable:
Armoring: Made from steel tape, which is applied around the core of the cable.
Flexibility: STA cables are more flexible compared to SWA cables due to the thinner nature of the tape armor.
Applications: Suitable for indoor and outdoor use, particularly in areas with less exposure to heavy mechanical stress.
Cost: Generally more cost-effective than SWA cables due to the simpler design and manufacturing process.
What is SWA Cable?
SWA cable, or Steel Wire Armored cable, is a highly durable and robust type of armored cable. It features steel wires wound around the cable core to provide superior protection against mechanical stresses, including impact, pressure, and potential physical damage. This construction makes SWA cables ideal for use in environments where cables are exposed to heavy mechanical impact or where additional protection is necessary.
Key Characteristics of SWA Cable:
Armoring: Made from steel wires twisted around the cable, offering enhanced protection against physical and mechanical damage.
Strength: SWA cables are stronger and more rigid compared to STA cables, providing superior protection in high-risk environments.
Applications: Commonly used for underground installations, outdoor installations, or in environments where the cable may be subjected to higher levels of mechanical stress.
Cost: SWA cables are typically more expensive than STA cables due to the more complex construction and the use of steel wires.
Key Differences Between STA and SWA Cables
1. Armor Type and Construction
STA Cable: Uses steel tape that is applied around the insulation layer. This design makes the cable more flexible but offers less protection compared to the steel wire in SWA cables.
SWA Cable: Features steel wires that are tightly wound around the cable for a much stronger defense against external damage. This results in a stiffer and more durable cable compared to STA.
Impact: SWA cables are better suited for high-impact environments, while STA cables are more flexible and suitable for less demanding conditions.
2. Mechanical Protection
STA Cable: The steel tape armor in STA cables offers moderate protection against mechanical stress. It is effective for protecting cables in environments where they are not exposed to excessive physical forces.
SWA Cable: The steel wire armor in SWA cables provides superior mechanical protection, making it ideal for high-stress environments, such as underground installations, construction sites, or industrial applications where cables may be exposed to significant physical forces.
Impact: For heavy-duty applications or areas with higher risk of damage, SWA cables offer better protection than STA cables.
3. Flexibility
STA Cable: The steel tape armor gives STA cables greater flexibility compared to SWA cables. This makes STA cables easier to install in tight spaces or areas requiring frequent cable movement.
SWA Cable: The steel wire armor makes SWA cables stiffer, which can make installation more challenging in confined spaces or areas where flexibility is needed.
Impact: STA cables are preferred in installations where flexibility is a key requirement, while SWA cables are used when durability and strength are prioritized.
4. Cost and Availability
STA Cable: Generally, STA cables are more cost-effective than SWA cables. The manufacturing process is simpler, and the steel tape used is less expensive than the steel wires in SWA cables.
SWA Cable: Due to the use of steel wires, SWA cables are typically more expensive. However, this increased cost is justified by the added protection and durability provided by the steel wire armor.
Impact: If the application involves moderate mechanical stress and budget constraints, STA cables might be more suitable. For high-stress or outdoor applications, SWA cables, despite their higher cost, offer a more robust solution.
5. Applications
STA Cable: Ideal for use in less hazardous environments, such as indoor installations, control circuits, or light-duty industrial applications.
SWA Cable: Best suited for heavy-duty environments, such as underground installations, industrial settings, or outdoor locations exposed to mechanical impact, moisture, or potential damage.
Impact: Choose STA cables for general-purpose applications where flexibility and moderate protection are needed. Opt for SWA cables when the cable will be exposed to higher physical or environmental stress.
Industry Trends and Considerations
The demand for armored cables like STA and SWA cables is rising, driven by the expansion of industrial sectors, construction, and urbanization. According to market reports, the global armored cable market is projected to grow at a CAGR of 5.2% from 2023 to 2028, with significant growth expected in industries such as construction, energy, and infrastructure development.
Manufacturers are increasingly turning to SWA cables for high-durability needs, while STA cables continue to be popular for less-demanding applications, owing to their flexibility and cost-effectiveness.
Conclusion
Both STA cables and SWA cables offer excellent protection for electrical installations, but the choice between the two depends largely on the specific needs of the application. While STA cables are more flexible and cost-effective, they provide moderate mechanical protection. In contrast, SWA cables offer superior strength and are better suited for harsh environments or high-risk installations.
For manufacturers and procurement professionals looking to source the right cable for their projects, it’s essential to evaluate the environmental conditions, mechanical stress, and flexibility requirements of the installation. By choosing the right type of armored cable, you can ensure optimal performance, safety, and durability for your electrical systems.
