Voltage: 0.6/1KV
Model: YJLV22 YJLV32 YJLV42...
Applications:
Power transmission
Electrical systems in buildings
Industrial control and automation
Transportation
Product Advantage Description:
The advantages of aluminum core power cable mainly include low cost, light weight, good corrosion resistance and oxidation resistance.

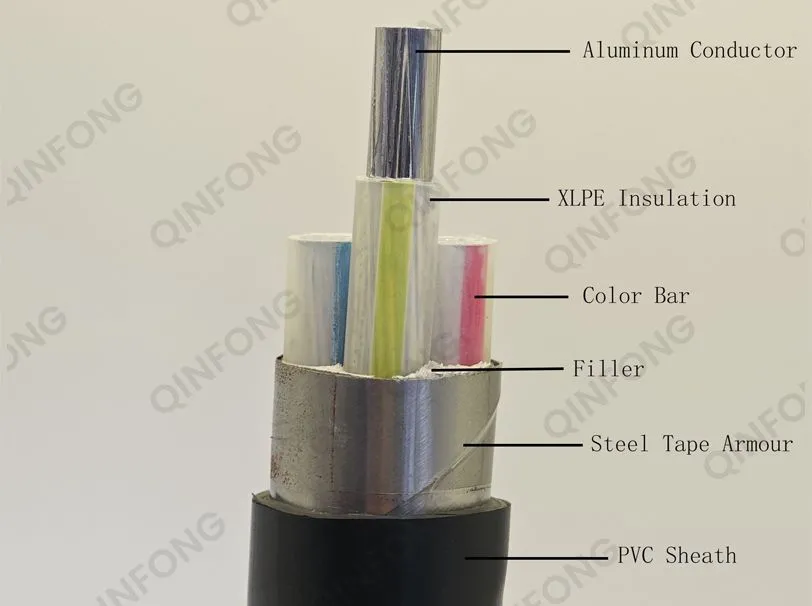

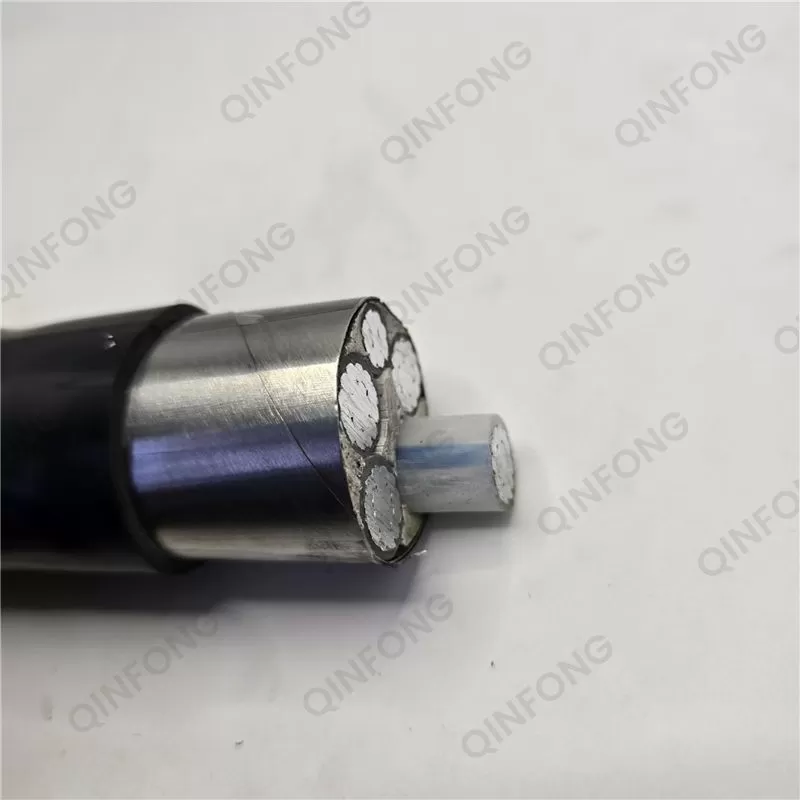

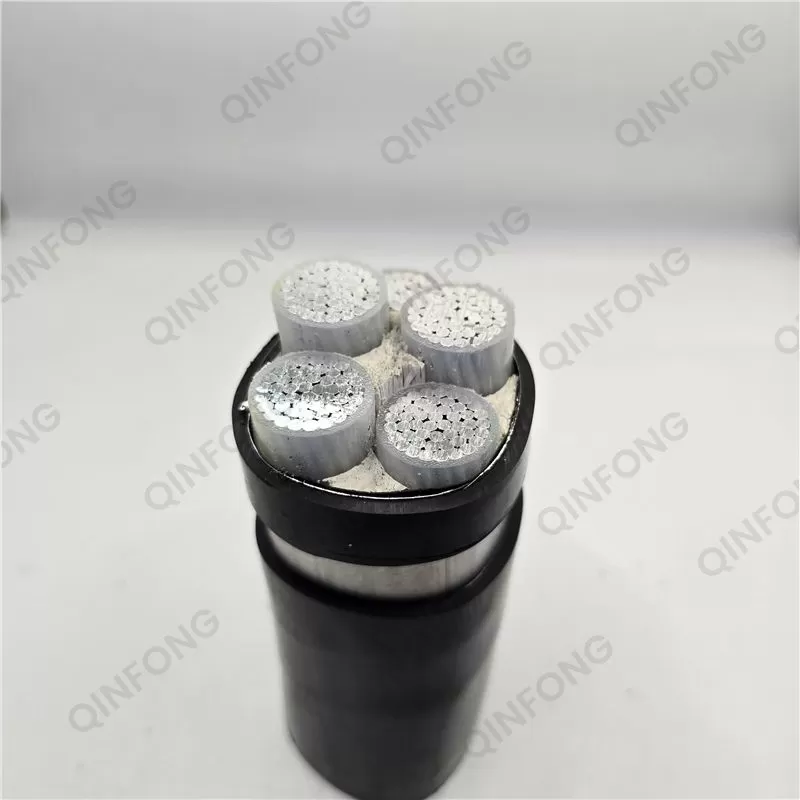

Conductor: Oxygen-free Aluminum
Insulation material: Crosslinked Polyethylene
Insulation color: Natural Color or to be customized
Filling material: Non-hygroscopic Material
Reinforcement: Steel Tape Armored (or to be customized)
Outer sheath: PVC/PE
Sheath color: Black
Physical property:
Maximum operating temperature of conductor:
70℃ (PVC insulation), 90℃ (XLPE insulation)
Minimum operating temperature:
-5℃ (PVC or LSZH sheath), -20℃ (PE sheath)
Short-circuit temperature (no more than 5 seconds) :
140℃-160℃ (PVC insulation), 250℃ (XLPE insulation)
Technical Parameters

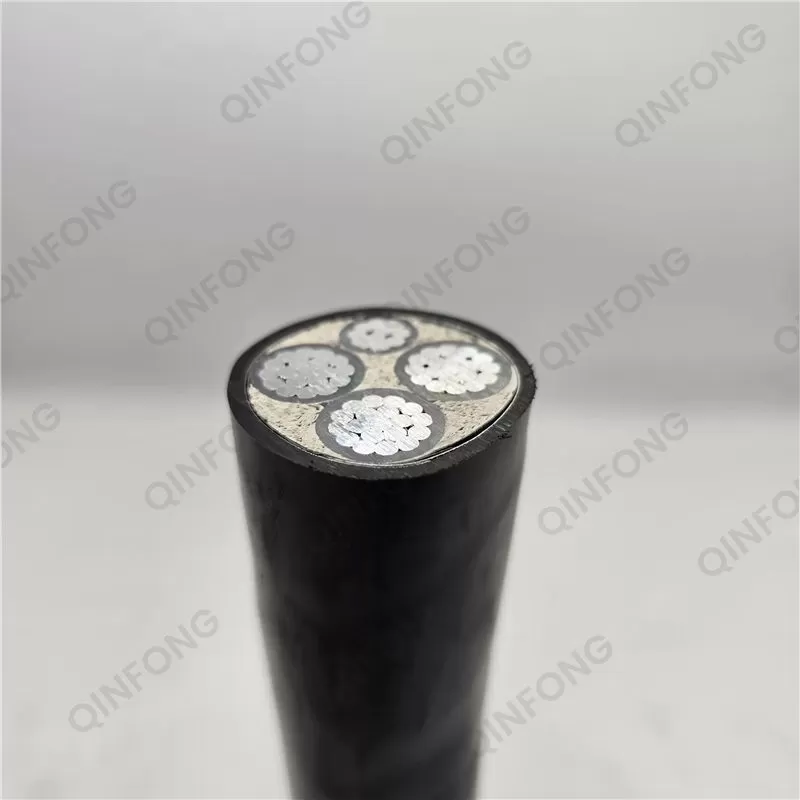

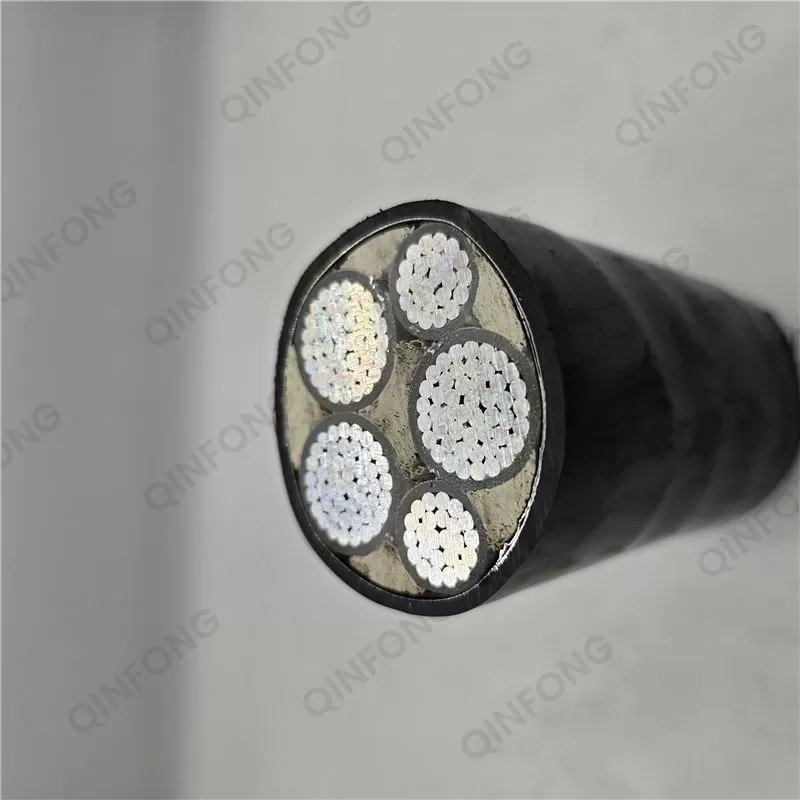

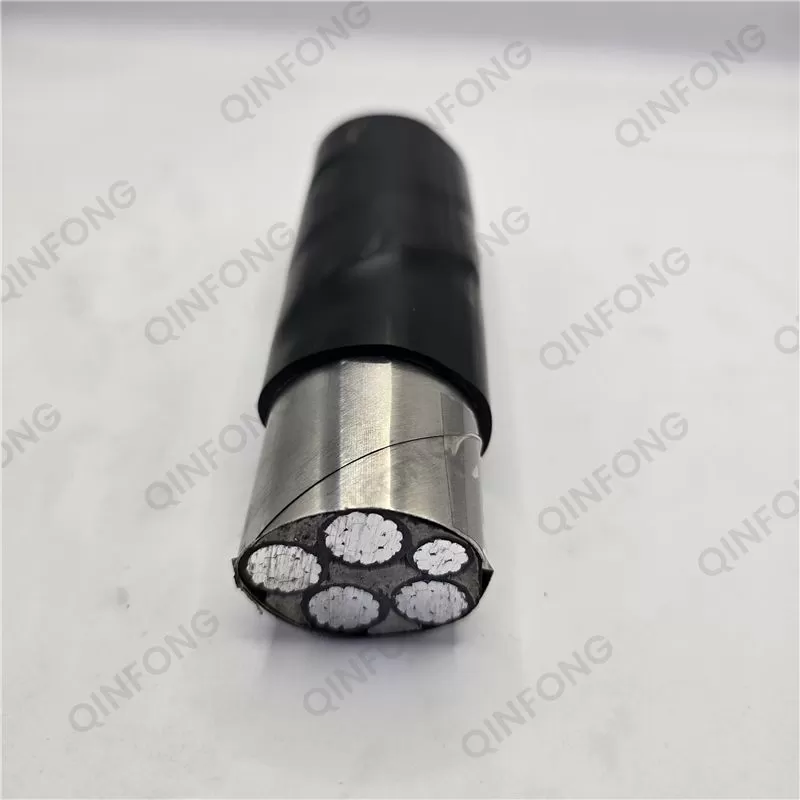

| 3+1-Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable（0.6/1KV） | ||||||||
| No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of Steel Tape | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
| 3×4+1×2.5 | 0.7/0.7 | 0.2 | 1.8 | 15.5 | 318 | 7.41/12.1 | / | 30 |
| 3×6+1×4 | 0.7/0.7 | 0.2 | 1.8 | 16.8 | 371 | 4.61/7.41 | / | 38 |
| 3×10+1×6 | 0.7/0.7 | 0.2 | 1.8 | 19.3 | 478 | 3.08/4.61 | 50 | 47 |
| 3×16+1×10 | 0.7/0.7 | 0.2 | 1.8 | 22.1 | 615 | 1.91/3.08 | 64 | 62 |
| 3×25+1×16 | 0.9/0.7 | 0.2 | 1.8 | 25.1 | 794 | 1.20/1.91 | 86 | 78 |
| 3×35+1×16 | 0.9/0.7 | 0.2 | 1.8 | 26.8 | 926 | 0.868/1.91 | 105 | 94 |
| 3×50+1×25 | 1.0/0.9 | 0.2 | 1.9 | 30.2 | 1175 | 0.641/1.20 | 125 | 110 |
| 3×70+1×35 | 1.1/0.9 | 0.2 | 2.0 | 35.1 | 1570 | 0.443/0.868 | 165 | 135 |
| 3×95+1×50 | 1.1/1.0 | 0.5 | 2.2 | 40.4 | 2359 | 0.320/0.641 | 200 | 160 |
| 3×120+1×70 | 12./1.1 | 0.5 | 2.3 | 45 | 2886 | 0.253/0.443 | 235 | 185 |
| 3×150+1×70 | 1.4/1.1 | 0.5 | 2.5 | 49.1 | 3396 | 0.206/0.443 | 270 | 205 |
| 3×185+1×95 | 1.6/1.1 | 0.5 | 2.8 | 54.3 | 4070 | 0.164/0.320 | 310 | 235 |
| 3×240+1×120 | 1.7/1.2 | 0.5 | 2.8 | 59.1 | 4855 | 0.125/0.253 | 365 | 260 |
| 3×300+1×150 | 1.8/1.4 | 0.5 | 3.0 | 66.0 | 6028 | 0.100/0.206 | 420 | 290 |
| 4+1-Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable（0.6/1KV） | ||||||||
| No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of Steel Tape | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
| 4×4+1×2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.3 | 365 | 7.41/12.1 | / | 30 |
| 4×6+1×4 | 0.7/0.7 | 0.2 | 1.8 | 17.7 | 429 | 4.61/7.41 | / | 38 |
| 4×10+1×6 | 0.7/0.7 | 0.2 | 1.8 | 20.3 | 561 | 3.08/4.61 | 50 | 47 |
| 4×16+1×10 | 0.7/0.7 | 0.2 | 1.8 | 24 | 728 | 1.91/3.08 | 64 | 62 |
| 4×25+1×16 | 0.9/0.7 | 0.2 | 1.8 | 28.1 | 974 | 1.20/1.91 | 86 | 78 |
| 4×35+1×16 | 0.9/0.7 | 0.2 | 1.9 | 29.6 | 1134 | 0.868/1.91 | 105 | 94 |
| 4×50+1×25 | 1.0/0.9 | 0.2 | 2.0 | 34 | 1505 | 0.641/1.20 | 125 | 110 |
| 4×70+1×35 | 1.1/0.9 | 0.5 | 2.2 | 40.3 | 2351 | 0.443/0.868 | 165 | 135 |
| 4×95+1×50 | 1.1/1.0 | 0.5 | 2.3 | 44.8 | 2907 | 0.320/0.641 | 200 | 160 |
| 4×120+1×70 | 12./1.1 | 0.5 | 2.6 | 50.2 | 3588 | 0.253/0.443 | 235 | 185 |
| 4×150+1×70 | 1.4/1.1 | 0.5 | 2.8 | 54.6 | 4215 | 0.206/0.443 | 270 | 205 |
| 4×185+1×95 | 1.6/1.1 | 0.5 | 2.9 | 60.5 | 5133 | 0.164/0.320 | 310 | 235 |
| 4×240+1×120 | 1.7/1.2 | 0.5 | 3.0 | 67.1 | 6289 | 0.125/0.253 | 365 | 260 |
| 4×300+1×150 | 1.8/1.4 | 0.5 | 3.2 | 73.7 | 7544 | 0.100/0.206 | 420 | 290 |
| 3+2-Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable（0.6/1KV） | ||||||||
| No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of Steel Tape | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
| 3×4+2×2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.6 | 354 | 7.41/12.1 | / | 30 |
| 3×6+2×4 | 0.7/0.7 | 0.2 | 1.8 | 18 | 416 | 4.61/7.41 | / | 38 |
| 3×10+2×6 | 0.7/0.7 | 0.2 | 1.8 | 20.9 | 531 | 3.08/4.61 | 50 | 47 |
| 3×16+2×10 | 0.7/0.7 | 0.2 | 1.8 | 24 | 694 | 1.91/3.08 | 64 | 62 |
| 3×25+2×16 | 0.9/0.7 | 0.2 | 1.8 | 28.1 | 920 | 1.20/1.91 | 86 | 78 |
| 3×35+2×16 | 0.9/0.7 | 0.2 | 1.9 | 29.6 | 1034 | 0.868/1.91 | 105 | 94 |
| 3×50+2×25 | 1.0/0.9 | 0.2 | 2.0 | 34 | 1400 | 0.641/1.20 | 125 | 110 |
| 3×70+2×35 | 1.1/0.9 | 0.5 | 2.2 | 40.3 | 2153 | 0.443/0.868 | 165 | 135 |
| 3×95+2×50 | 1.1/1.0 | 0.5 | 2.3 | 44.8 | 2658 | 0.320/0.641 | 200 | 160 |
| 3×120+2×70 | 12./1.1 | 0.5 | 2.5 | 50.2 | 3329 | 0.253/0.443 | 235 | 185 |
| 3×150+2×70 | 1.4/1.1 | 0.5 | 2.6 | 54.6 | 3790 | 0.206/0.443 | 270 | 205 |
| 3×185+2×95 | 1.6/1.1 | 0.5 | 2.8 | 60.5 | 4575 | 0.164/0.320 | 310 | 235 |
| 3×240+2×120 | 1.7/1.2 | 0.5 | 3.0 | 67.1 | 5564 | 0.125/0.253 | 365 | 260 |
| 3×300+2×150 | 1.8/1.4 | 0.5 | 3.2 | 73.7 | 6801 | 0.100/0.206 | 420 | 290 |
