Qinfeng Copper Conductor Steel Tape Armored Cable

Advantages:

‌The advantages of copper core power cables are mainly reflected in their physical and electrical properties, including low resistivity, high strength, good ductility, strong fatigue resistance, good stability, large current carrying capacity, low voltage loss, low energy consumption, low heating temperature, oxidation resistance and corrosion resistance.

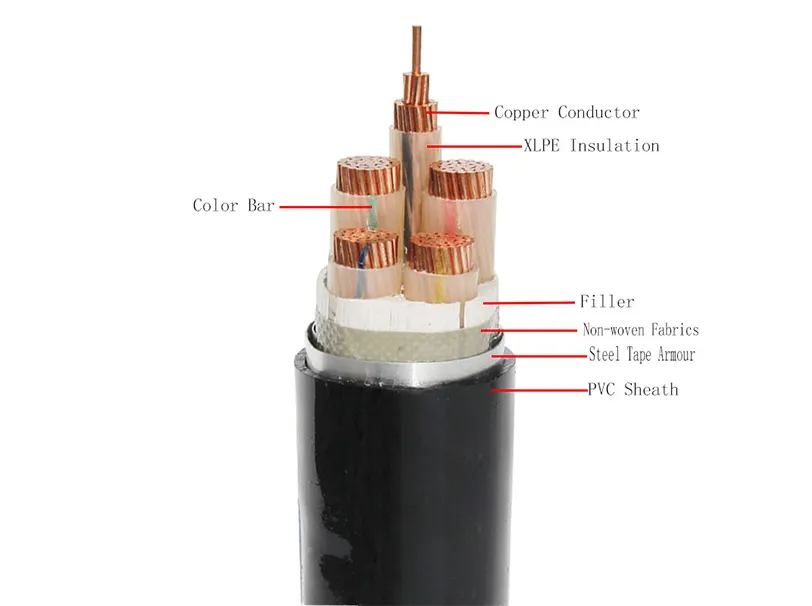

Conductor: Oxygen-free Copper

Insulation material: Crosslinked Polyethylene

Insulation color: Natural Color or to be customized

Filling material: Non-hygroscopic Material

Reinforcement: Steel Tape Armored (or to be customized)

Outer sheath: PVC/PE

Sheath color: Black

Physical property:

Maximum operating temperature of conductor:

70℃ (PVC insulation), 90℃ (XLPE insulation)

Minimum operating temperature:

-5℃ (PVC or LSZH sheath), -20℃ (PE sheath)

Short-circuit temperature (no more than 5 seconds) :

140℃-160℃ (PVC insulation), 250℃ (XLPE insulation)

Technical Parameters

3+1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Steel Tape	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20℃)	Current Carrying Capacity（Ω/km）
(mm²)	(mm)	(mm)	(mm)	(mm)	(kg/km)	（Ω/km）	In Air (A)	In Ground (A)
3×4+1×2.5	0.7/0.7	0.2	1.8	15.5	368	4.61/7.41	37	51
3×6+1×4	0.7/0.7	0.2	1.8	16.8	465	3.08/4.61	47	64
3×10+1×6	0.7/0.7	0.2	1.8	19.3	633	1.83/3.08	65	86
3×16+1×10	0.7/0.7	0.2	1.8	22.1	890	1.15/1.83	84	110
3×25+1×16	0.9/0.7	0.2	1.8	25.1	1272	0.727/1.15	110	140
3×35+1×16	0.9/0.7	0.2	1.8	26.8	1583	0.524/1.15	135	170
3×50+1×25	1.0/0.9	0.2	1.9	30.2	2030	0.387/0.727	170	205
3×70+1×35	1.1/0.9	0.2	2.0	35.1	2810	0.268/0.524	215	250
3×95+1×50	1.1/1.0	0.5	2.2	40.4	4135	0.193/0.387	265	300
3×120+1×70	12./1.1	0.5	2.3	45	5135	0.153/0.268	310	345
3×150+1×70	1.4/1.1	0.5	2.5	49.1	6120	0.124/0.268	350	385
3×185+1×95	1.6/1.1	0.5	2.8	54.3	7616	0.0991/0.193	405	435
3×240+1×120	1.7/1.2	0.5	2.8	59.1	9679	0.0754/0.153	480	500
3×300+1×150	1.8/1.4	0.5	3.0	66.0	11889	0.0601/0.124	555	565
4+1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Steel Tape	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20℃)	Current Carrying Capacity（Ω/km）
(mm²)	(mm)	(mm)	(mm)	(mm)	(kg/km)	（Ω/km）	In Air (A)	In Ground (A)
4×4+1×2.5	0.7/0.7	0.2	1.8	16.3	434	4.61/7.41	37	51
4×6+1×4	0.7/0.7	0.2	1.8	17.7	549	3.08/4.61	47	64
4×10+1×6	0.7/0.7	0.2	1.8	20.3	759	1.83/3.08	65	86
4×16+1×10	0.7/0.7	0.2	1.8	24	1079	1.15/1.83	84	110
4×25+1×16	0.9/0.7	0.2	1.8	28.1	1557	0.727/1.15	110	140
4×35+1×16	0.9/0.7	0.2	1.9	29.6	1962	0.524/1.15	135	170
4×50+1×25	1.0/0.9	0.2	2.0	34	2601	0.387/0.727	170	205
4×70+1×35	1.1/0.9	0.2	2.2	40.3	3916	0.268/0.524	215	250
4×95+1×50	1.1/1.0	0.5	2.3	44.8	5260	0.193/0.387	265	300
4×120+1×70	12./1.1	0.5	2.6	50.2	6545	0.153/0.268	310	345
4×150+1×70	1.4/1.1	0.5	2.8	54.6	7780	0.124/0.268	350	385
4×185+1×95	1.6/1.1	0.5	2.9	60.5	9688	0.0991/0.193	405	435
4×240+1×120	1.7/1.2	0.5	3.0	67.1	12253	0.0754/0.153	480	500
4×300+1×150	1.8/1.4	0.5	3.2	73.7	15078	0.0601/0.124	555	565
3+2 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Steel Tape	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20℃)	Current Carrying Capacity（Ω/km）
(mm²)	(mm)	(mm)	(mm)	(mm)	(kg/km)	（Ω/km）	In Air (A)	In Ground (A)
3×4+2×2.5	0.7/0.7	0.2	1.8	16.6	412	4.61/7.41	37	51
3×6+2×4	0.7/0.7	0.2	1.8	18	525	3.08/4.61	47	64
3×10+2×6	0.7/0.7	0.2	1.8	20.9	714	1.83/3.08	65	86
3×16+2×10	0.7/0.7	0.2	1.8	24	1016	1.15/1.83	84	110
3×25+2×16	0.9/0.7	0.2	1.8	28.1	1465	0.727/1.15	110	140
3×35+2×16	0.9/0.7	0.2	1.9	29.6	1769	0.524/1.15	135	170
3×50+2×25	1.0/0.9	0.2	2.0	34	2316	0.387/0.727	170	205
3×70+2×35	1.1/0.9	0.5	2.2	40.3	3230	0.268/0.524	215	250
3×95+2×50	1.1/1.0	0.5	2.3	44.8	4766	0.193/0.387	265	300
3×120+2×70	12./1.1	0.5	2.5	50.2	6080	0.153/0.268	310	345
3×150+2×70	1.4/1.1	0.5	2.6	54.6	7005	0.124/0.268	350	385
3×185+2×95	1.6/1.1	0.5	2.8	60.5	8767	0.0991/0.193	405	435
3×240+2×120	1.7/1.2	0.5	3.0	67.1	11105	0.0754/0.153	480	500
3×300+2×150	1.8/1.4	0.5	3.2	73.7	13645	0.0601/0.124	555	565

Customization

Our team is composed of experienced experts who are eager to help you find the right solution for your business.

Please specify product categories and specifications

Annual output of customized products: 8000 tons/year

Please specify the voltage: 0.3-35KV

Produce as per CE, UL, RoHS, IEC, etc.

Produce as per customers’ samples
